3GHz PD receiver
Product Features
l Supports upto 3GHz BW
l TO46 Header package
l Ball lens cap
l Operating case temperature: -40 to 85 °C
l High reliability
l Compatible with RoHS6
Product Applications
l Analog communication
l Data communication
Performance Specifications
Absolute Maximum Ratings | ||||
Parameter | Symbol | Min. | Max. | Unit |
Storage Temperature range | Tst | -40 | +100 | °C |
operating Temperature range | Top | -40 | +85 | °C |
Operating Relative Humidity | RH | 5 | 85 | % |
Reverse bias | Vpd for PD | 10 | V | |
Input optical power | Pmax for PD | 10 | dBm | |
Lead soldering time | t @ 260°C | 10 | s | |
Optical and Electrical Specification | ||||||
Parameter | Symbol | Min | Typ | Max | Unit s | Not e |
Response Spectrum | λ | 1100 | 1680 | nm | ||
BW | -3dB | 3 | GHz | - | ||
Active area diameter | φ | 50 | um | |||
Reverse Breakdown Voltage | Vbr | 30 | 3 | |||
Responsivity | R | 0.9 | A/W | 1,2 | ||
Dark current | Id | 1 | 10 | nA | ||
Capacitance | C | 0.25 | pf | |||
Fiber type | SM/MM 0.9mm clear Curve , 1m length, with boot | |||||
Notes:
1. λ=1310nm, 1550nm
2. 25°C normal bias
3. Id=10uA

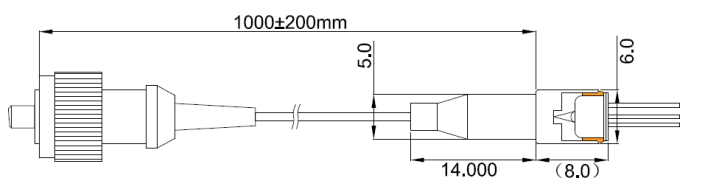

Mechanical details
