Product Features：
 Supports up to 6bps bit rates
 Low threshold current
 High output power
 TO56 Header package
 Ball lens cap/ Aspherical lens cap option
 Operating case temperature: -40 to 85 °C
 High reliability
 Compatible with RoHS6
Product Applications：
 Gigabit Ethernet
 Fiber Channel for 4.25G
 Analog communication
 Data communication

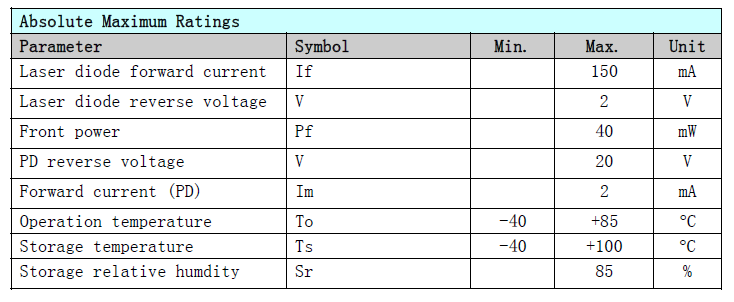

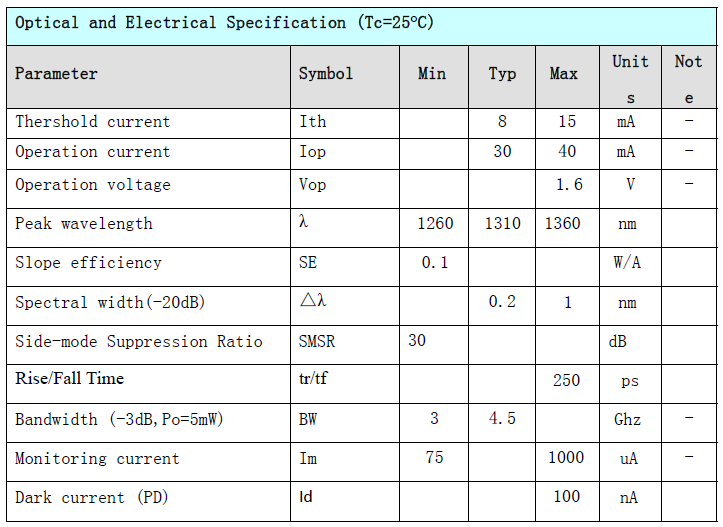

Performance Specifications：

Notes: All laser chips come from wafers that have been certified using a representative lot of devices that must achieve an acceptable yield for burn-in.

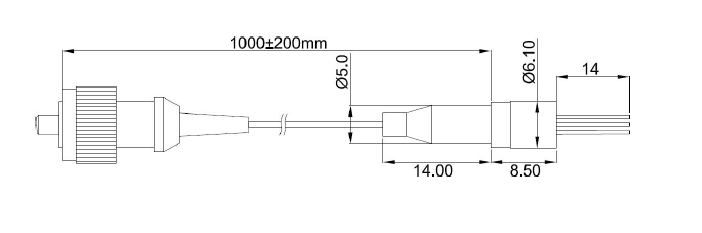

Outline drawings：

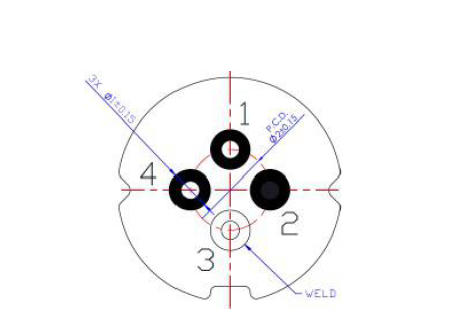

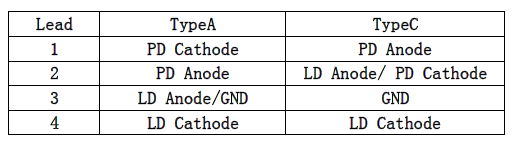

PIN Configuration：

1.1 (View from lead side)

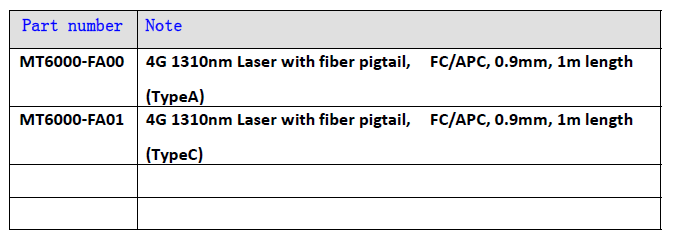

Ordering Information
